14 meter Pure Electric Airport Shuttle Bus
DB14, Shinning On The Way
Our 14-meter electric buses have been described as “a masterpiece”, thanks to the exceptional technological features available. We take a more modest approach as we strive for continual improvement, but the modern design, smooth operation, and easy-to-maintain engines are at the heart of our vehicle development blueprint
DETAILS
| Model | PEV12 |
|---|---|
| Driving (LHD/RHD) | LHD/RHD |
| Parameter | |
|---|---|
| Body Structure | Monocoque |
| Floor Structure | Full low floor |
| Length × Width× Height (mm) | 13980 x 3050 x 3400 |
| Seat Plan | 10 seats+1 driver +1 wheelchair |
| Max. Passenger Capacity | From 87 up to 120 |
| Battery（kwh） | ● CATL, LFP, 210 Kwh |
| Maximum Speed（km/h） | 60 |
| Motor | |
|---|---|
| Motor | Voith VPMA |
| Chassis | |
|---|---|
| Suspension System | ● Front 2, rear 4, air suspension |
| Kneeling | ● ECAS |
| Braking | ● EBS3+ESC |
| Steering Pump | ● Dual-power electric |
| Tire | ● Michelin, tubeless |
| Body | |
|---|---|
| Interior | ◎ Aesthetic ceiling with build-in ambient lights (multiple colors options) ◎ Fiber glass wheel arc |
| Doors | 1st Door: Aluminum alloy pneumatic anti-pinch double outer swing door 2nd Door: Aluminum alloy pneumatic anti-pinch double outer swing door 3rd Door: Aluminum alloy pneumatic anti-pinch double outer swing door |
| Side Window | ● Tempered glass |
| Driver Seat | ● Pneumatic suspension driver seat |
| Passenger Seat | ● Ergonomic seat |
| Rear Mirror | ● Iron-framed rear mirror ● (with defrost) ◎ Aluminum bracket rear mirror ◎ (with defrost) |
| Passenger Area | Cooling power 32KW, Heating power 28KW High voltage electric defroster ACTIA Dashboard |
| Driver Area | Cooling power 5KW, heating power 4KW |
| Heating & Defrosting | ● Low voltage, electric defrost ◎ High voltage, electric defrost |
| Electrical Instrument | ACTIA Dashboard |
| Audio/Video System | ◎ Hard disk player ◎ MP3 player ◎ DVD player |
| Monitoring | ● Middle door camera + reverse camera |
| Route Display | ● Four pcs: front, rear, side, interior above gangway |
| Amenities | |
|---|---|
| EPB | ● Electronic Parking Brake |
| Note: ● Standard equipment；◎ Optional equipment； | All information and images in this brochure are subject to change without prior notice. King Long reserves the right for parameter change and final interpretation. |
Reason why DINOBUS will be part of your successful business DNA?
The monocoque body structure and the multi-dimensional lightweight design of motors, batteries and interior and exterior trims reduce the weight of the entire vehicle.
The frame adopts a square tone, small, rounded transition, rigid and soft, smooth lines, beautiful and generous, giving people a feeling of elegance, kindness, and safety.
DINOBUS Pure Electric Airport Bus uses a self-patented lightweight aluminum alloy body, a full load-carrying electric bus chassis, high energy density batteries, an efficient energy-saving motor, an integrated intelligent electronic control system, an auxiliary system controller, a power steering pump, and the latest energy-saving electric air-conditioning system. This vehicle also offers distinct advantages of light weight and low energy consumption.
Smart & Intelligent Driving at Ease

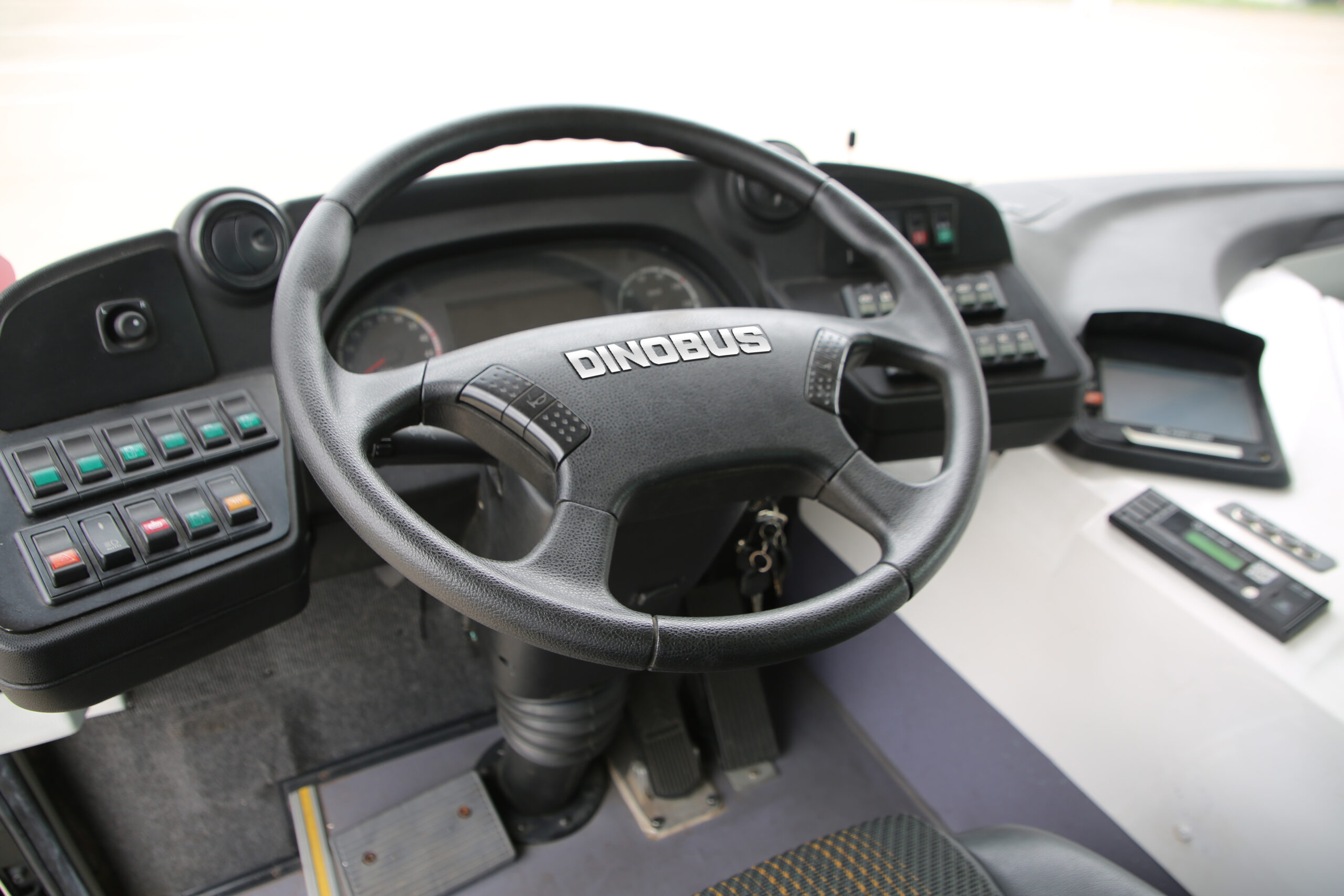

Bus offers a fabulous driving experience beyond imagination with series of user-friendly designs. Magnetically closable driver cabin creates a comfortable and safe environment. Actia dashboard with adjustable console provides better adaptation to the driver for easy access to every control. Multiple devices and assistant systems are equipped to ensure effective and intelligent driving at ease, such as 360 panoramic view system, intelligent wiper system, Mobileye shield+ system.
